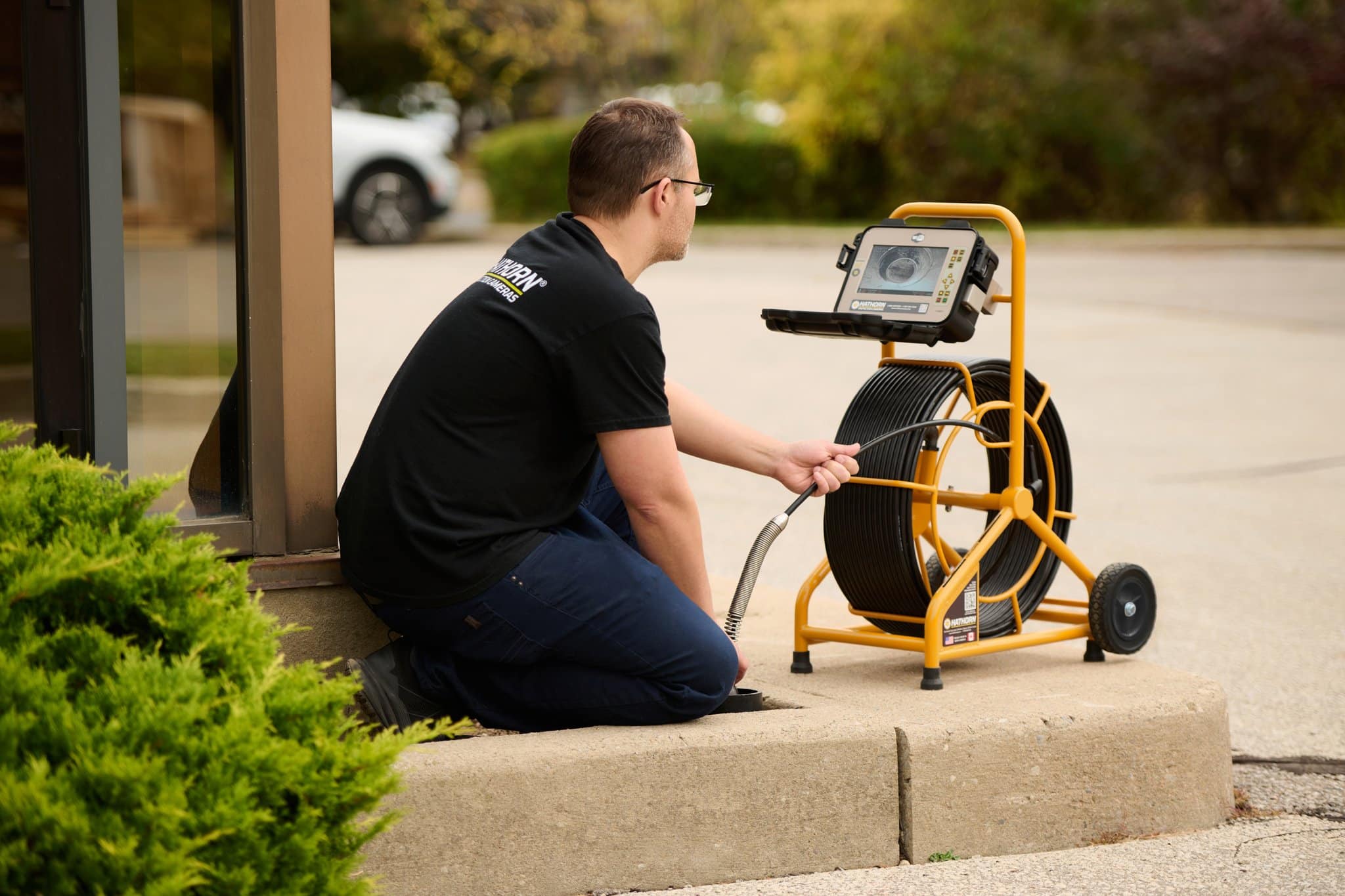

H7 Push Camera System
Equipped with 200ft. of premium cable and your choice of self leveling camera head.
Hathorn® H7 systems come standard with a 7” (17.8 cm) daylight readable shatter resistant LCD monitor with 1,000 cd/m2 of brightness, making it the brightest monitor in its class.
Available with Wi-Fi as an option, the H7 has an on-board hard drive with 64Gb (upgradable to 128Gb) capacity and USB recording allowing the user to record MPEG4 video and JPEG screen shots.
These rugged systems have a butt-welded steel frame construction and feature military-grade faceplates and connectors.
Self-Leveling camera heads are standard
One touch video recording (MPEG4) and screen shot (JPEG) to USB & HDD
On-screen footage counter in both feet and meters with reset function
Includes 512Hz sonde control
Light weight unit - 45lbs/20kgs
Record to standard 64Gb hard drive (upgradable to 128Gb) or USB. Never lose another recording again!
Wi-Fi option is available
Powered by 18v Milwaukee™ or equivalent batteries or 12V AC/DC adaptor
Runs up to 5 hours on a single 3.0Ah charge
Genuinely North American made
Butt-welded steel frame construction
Military grade faceplates and connectors
7” shatter-resistant LCD monitor
Industry-leading HDPE premium cables
Specification
SIZE AND DISPLAY
7" impact-resistant, daylight-readable LCD
RESOLUTION & BRIGHTNESS
1024 X 600 Pixels with 1000 cd/m2
RECORDING OPTIONS
MPEG4 video (H.264 at 30fps) & JPEG Screenshots
WEIGHT WITHOUT BATTERY
45lbs
DIMENSIONS
19" x 15.5" 29.5"
WATER RESISTANCE
IP65
OPERATING TEMPERATURE
14ºF to 122ºF (-10ºC to 50ºC)
STORAGE TEMPERATURE
4ºF to 140ºF (-20ºC to 60ºC)
BATTERY LIFE
5Hrs. using 3.0Ah
HARD DRIVE CAPACITY
64GB (Standard) or 128GB (Upgrade)
| Catalog | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Max Pipe Well Lit |
|---|---|---|---|---|---|---|
| H7-2143-SL | 1.43" | Yes | 200ft | 1/2" | 3" | 10" |
| H7-2123-SL | 1.23" | Yes | 200ft | 0.400" | 2" | 6" |
| H7-2100 | 1" | No | 200ft | 3/8" | 1.5" | 4" |
User Manual
Looking to get the most out of our product? Whether you’re a first-time user or looking to explore advanced options, our manual has you covered. Simply click the button below to download the user manual and start discovering everything you need to know.
