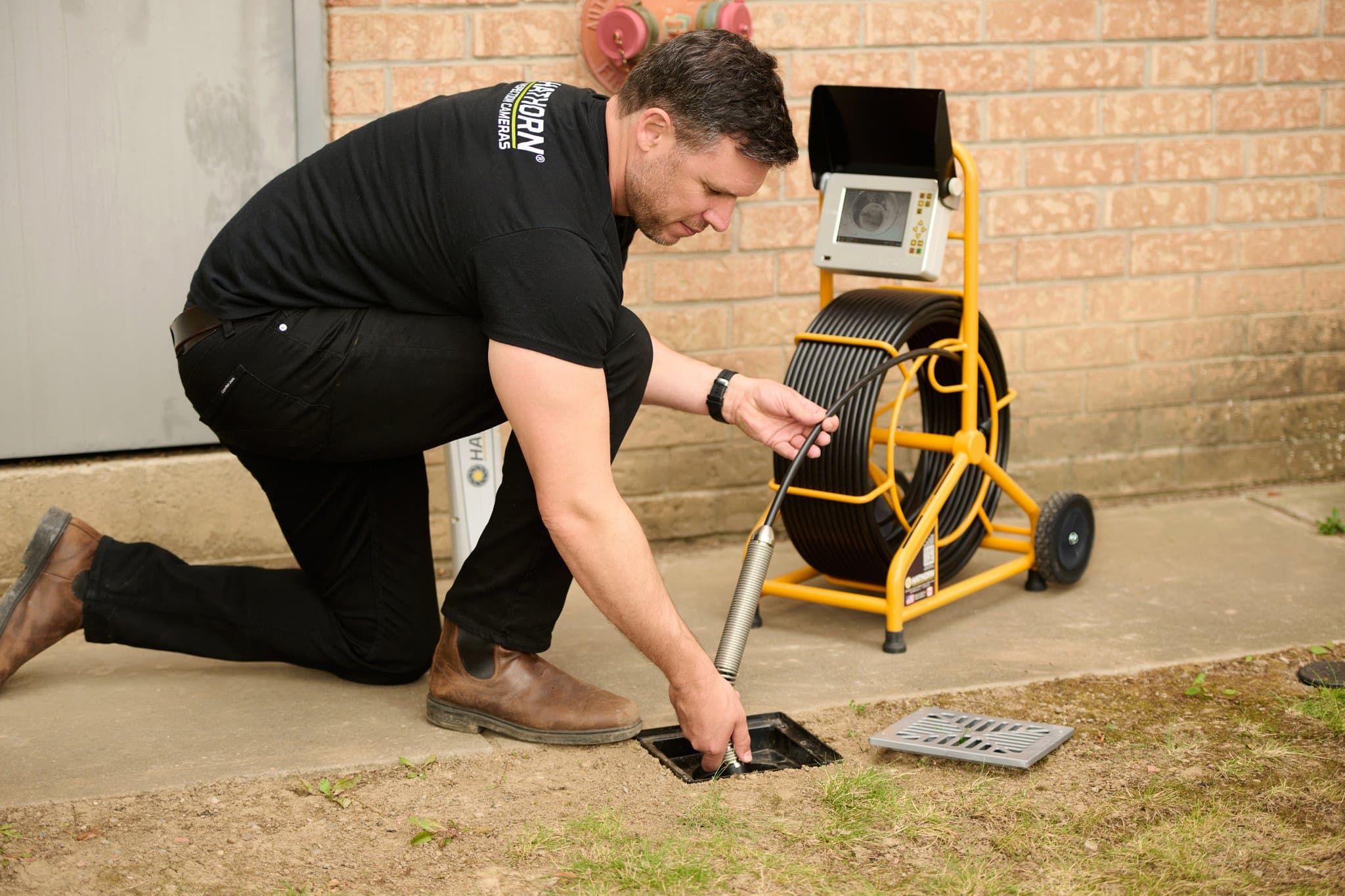

H5 Push Camera System

Choice of rugged Hathorn camera heads and different stiffnesses of push rod.

Hathorn® H5 has been specially designed for the rental industry with ruggedness and simplicity in mind. The H5 comes with a metal-guarded 5.5″ daylight readable shatter-resistant LCD monitor with 1000 cd/m2 of brightness, making it the brightest monitor in the rental industry. It offers USB video recording with a screen shto feature allowing the user to record MPEG4 video and JPEGs to a portable USB drive. Hathorn product have been trusted by rental centers across the country for over a decade to deliver strong return on investment and unmatched durability.

Easy to Use
  • Self-Leveling camera heads are standard

  • One touch video recording (MPEG4) and screen shot (JPEG) to USB & HDD

  • On-screen footage counter in both feet and meters with reset function

  • Includes 512Hz sonde control

Portable
  • Light weight unit - 45lbs

  • Wi-Fi option is available

Versatile
  • Powered by 18v Milwaukee™ or equivalent batteries or 12V AC/DC adaptor

  • Runs up to 5 hours on a single 3.0Ah charge

Rugged
  • Genuinely North American made

  • Butt-welded steel frame construction

  • Military grade faceplates and connectors

  • 7” shatter-resistant LCD monitor

  • Industry-leading HDPE premium cables

SIZE AND DISPLAY

5.5" impact-resistant, daylight-readable LCD

RESOLUTION & BRIGHTNESS

1024 X 600 Pixels with 1000 cd/m2

RECORDING OPTIONS

MPEG4 video (H.264 at 30fps) & JPEG Screenshots

WEIGHT WITHOUT BATTERY

45lbs

DIMENSIONS

19" x 15.5" 29.5"

WATER RESISTANCE

IP65

OPERATING TEMPERATURE

14ºF to 122ºF (-10ºC to 50ºC)

STORAGE TEMPERATURE

4ºF to 140ºF (-20ºC to 60ºC)

BATTERY LIFE

5Hrs. using 3.0Ah

USB CAPACITY

USB 2.0 up to 32GB

Catalog Camera HeadSelf LevelingRod LengthRod SizeMin 90º ElbowMax Pipe Well Lit
H5-2143-SL1.43"Yes200ft1/2"3"10"
H5-2123-SL1.23"Yes200ft0.400"2"6"
H5-21001"No200ft3/8"1.5"4"
