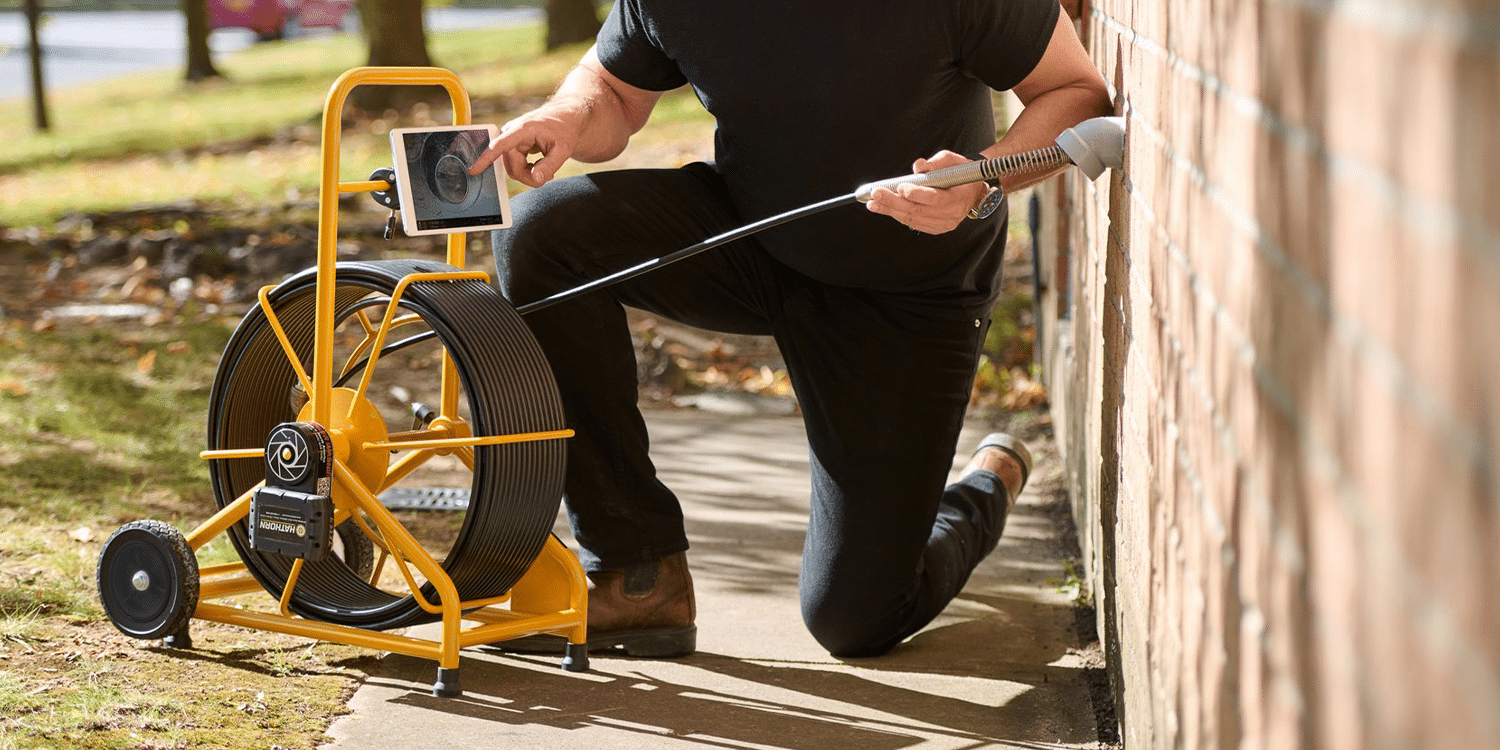

Mid Wi-Fi Camera Reel
Mid Wi-Fi reels come standard with a self leveling 1.43″ camera head and 200ft of 1/2″ push rod. The unit is portable and durable, ideal for pipes 3-10″ diameter.
Mid Wi-Fi reels come standard with a self leveling 1.43″ camera head and 200ft of 1/2″ push rod. The unit is portable and durable, ideal for pipes 3-10″ diameter.
We also offer the 1.23″ and 1.68″ camera heads on this unit as an option. Call us to find out more.
Footage counter and reset
Push around 2" elbows
Push up to 200ft / 60m in a 12" pipe
Includes 512Hz sonde
Wi-Fi stream/record, up to three devices at once
Ultra-sturdy 6" wheels to make transportation easy
Powered by 18v Milwaukee™ or compatible batteries
Compatible with all Hathorn® control modules
Self-levelling camera heads available
Three camera sizes available
Genuinely North American made
Butt-welded steel frame construction
Industry-leading HDPE premium cables
Specification
SIZE AND DISPLAY
Dependent upon Apple/Android Device
RECORDING OPTIONS
MPEG4
SCREENSHOT
JPEG
FILE STORAGE
Mobile Device, Cloud or USB
FOOTAGE COUNTER
Feet or meters - resettable
SONDE FREQUENCY
512Hz
PUSH ROD
HDPE - 200ft to 400ft / 3/8" to 5/8"
START UP TIME
15 Seconds
BATTERY LIFE
12Hrs. using 3.0Ah
WATER RESISTANCE - CAMERA & ROD
IP68 to 60psi
WATER RESISTANCE - REEL HUB
IP65
OPERATING TEMPERATURE
14ºF to 122ºF (-10ºC to 50ºC)
STORAGE TEMPERATURE
4ºF to 140ºF (-20ºC to 60ºC)
WI-FI FREQUENCY
IEEE802.11b/g/n
| Catalog | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Weight | Max Pipe | Dimensions |
|---|---|---|---|---|---|---|---|---|
| WMR-2143-SL | 1.43" | Yes | 200ft | 1/2" | 3" | 42lbs | 10" | 29" x 18" x 15" |
| WMR-2123-SL | 1.23" | Yes | 200ft | 0.400" | 2" | 42lbs | 6" | 29" x 18" x 15" |
