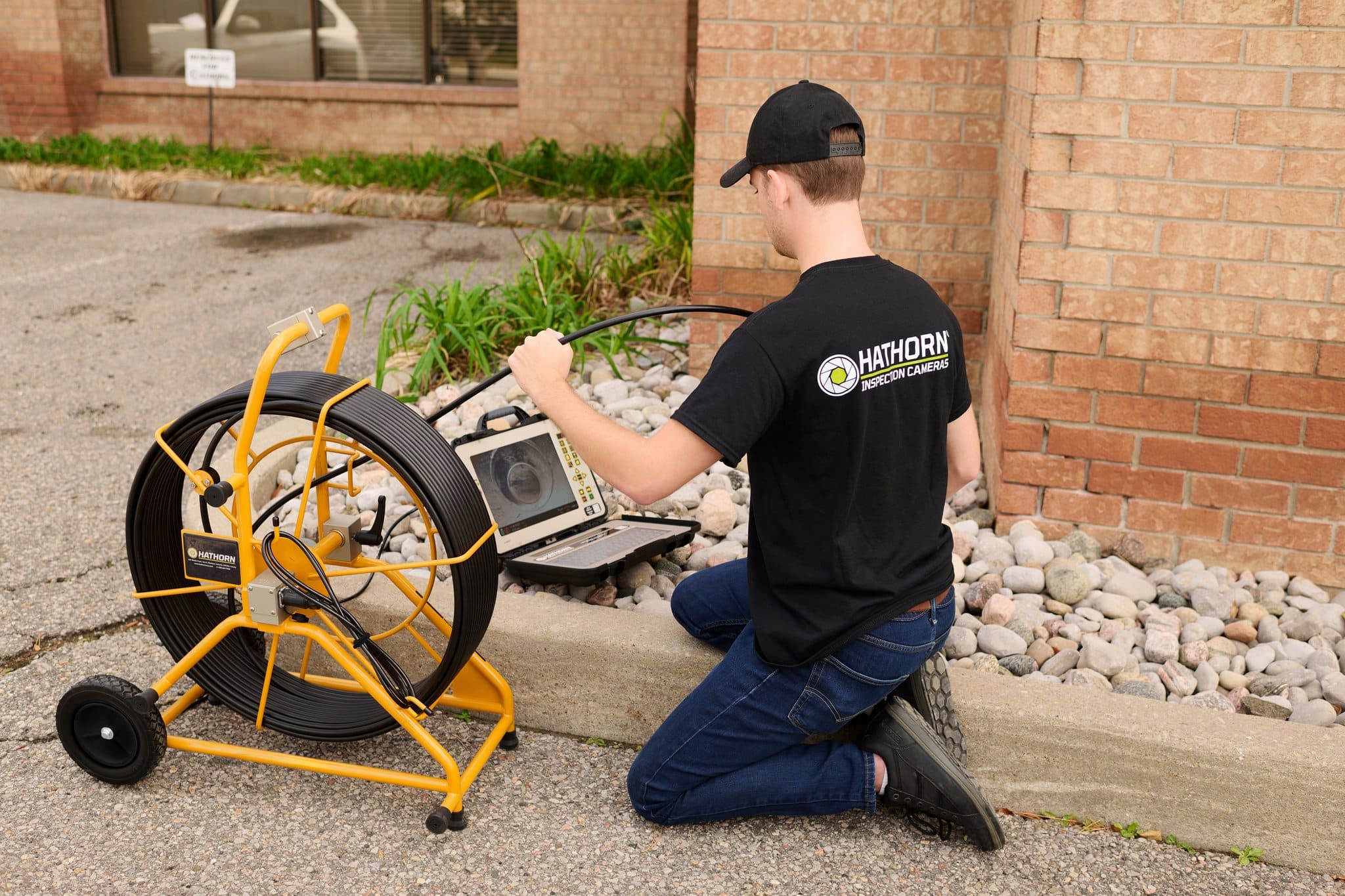

Mid Standard Camera Reel
Available in six camera head sizes, 1.23”, 1.43″ or 1.68”, self-leveling or straight view, with 200ft / 60m of push rod. Compatible with all Hathorn® command modules.
Available in six camera head sizes, 1.23”, 1.43″ or 1.68”, self-leveling or straight view, with 200ft / 60m of push rod. Compatible with all Hathorn® command modules.
Footage counter and reset
Push around 2" elbows
Push up to 200' in a 12" pipe
Includes 512Hz sonde
Ultra-sturdy 6" wheels to make transportation easy
Weighs only 42 lbs
Compatible with all Hathorn® control modules
Self-levelling camera heads available
Three camera sizes available
Genuinely North American made
Butt-welded steel frame constructionIndustry-leading HDPE premium cables
Specification
SIZE AND DISPLAY
Compatible with all Hathorn control modules. H12+ recommended for best picture and options
SONDE FREQUENCY
High power 512Hz or 640Hz (Available only with H12+ controller)
PUSH ROD
HDPE push rod with coax core
WATER RESISTANCE 0 CAMERA & ROD
IP67 to 60psi
WATER RESISTANCE - BATTERY CRADLE
IP65
WATER RESISTANCE - REEL HUB
IP64
OPERATING TEMPERATURE
14ºF to 122ºF (-10ºC to 50ºC)
STORAGE TEMPERATURE
4ºF to 140ºF (-20ºC to 60ºC)
| Catalog | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Weight | Max Pipe | Dimensions |
|---|---|---|---|---|---|---|---|---|
| MR-2143-SL | 1.43" | Yes | 200ft | 1/2" | 3" | 42lbs | 10" | 29" x 18" x 15" |
| MR-2123-SL | 1.23" | Yes | 200ft | 0.400" | 2" | 42lbs | 6" | 29" x 18" x 15" |
