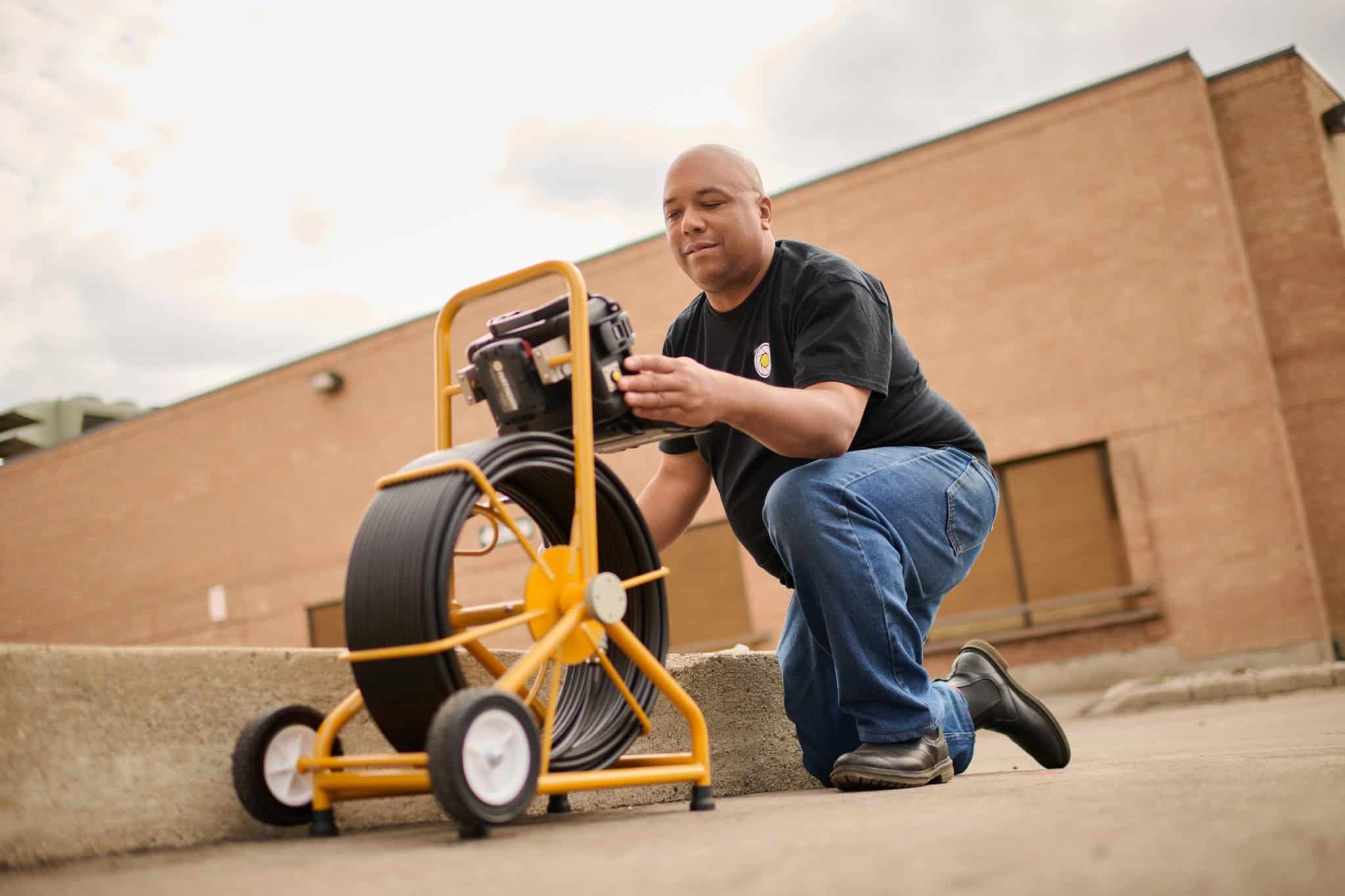

H2 Push Camera System
Trusted by plumbers and contractors to deliver rugged dependability and portability.
The Hathorn® H2 comes with a 7” shatter-resistant LCD monitor, 200 ft. of premium push rod and your choice of sell-leveling camera heads, all with cool running, super-bright LED lights. The H2 also includes an on- screen footage counter in feet and meters, as well as 512Hz or 640Hz High Power Sonde.
The H2 is an entry level inspection camera offering the same rugged quality and portability of our more expensive models. Being aimed at the budget conscious user who wants a robust, easy-to-use system, without paying for extra options.
Basic inspection camera system
On-screen footage counter in both feet and meters with reset function
Includes 512Hz sonde control
Light weight unit - 45lbs
External 18V battery compatability
- No Wi-Fi option is available
Straight view or self-leveling camera heads with HD picture quality and auto-iris technology
Genuinely North American made
Butt-welded steel frame construction
Military grade faceplates and connectors
7” impact-resistant LCD monitor
Industry-leading HDPE premium cables
Specification
SIZE AND DISPLAY
7" impact-resistant, daylight-readable LCD
RESOLUTION & BRIGHTNESS
1024 X 600 Pixels with 1000 cd/m2
SONDE FREQUENCIES
High power 512Hz
WEIGHT WITHOUT BATTERY
45lbs
DIMENSIONS
19" x 15.5" 29.5"
WATER RESISTANCE
IP65 when the lid is closed
OPERATING TEMPERATURE
14ºF to 122ºF (-10ºC to 50ºC)
STORAGE TEMPERATURE
4ºF to 140ºF (-20ºC to 60ºC)
BATTERY LIFE
6Hrs. using 3.0Ah
FOOTAGE COUNTER
Feet or meters - resettable
| Catalog | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Max Pipe Well Lit |
|---|---|---|---|---|---|---|
| H2-2143-SL | 1.43" | Yes | 200ft | 1/2" | 3" | 10" |
| H2-2123-SL | 1.23" | Yes | 200ft | 0.400" | 2" | 6" |
| H2-2100 | 1" | No | 200ft | 3/8" | 12.5" | 4" |
